JBOD Storage Enclosures
Securing the Durability of Server Systems.
JBOD Storage Enclosures
JBOD Chassis: 2U
DS25224
SPECIAL HIGHLIGHT
Supports 3 hot-swap system cooling
- Small form factor 2U JBOD
- Super cool HDD working temperature (<50C, during 30C)
- Supports CRPS 1+1 redundant
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller
- AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-826SE1C-R1K02JBOD
SPECIAL HIGHLIGHT
Simply Double High Density JBOD Storage Enclosure
- Extreme High Density Storage Chassis support 24x (12 front + 12 middle) 3.5" SAS/SATA 12Gb/s Hot-Swap Bays
- Single Expander Backplane Boards support SAS/SATA HDDs with 12Gb/s throughput
- 4x Mini-SAS HD ports for Internal/External Cascading
- 1000W (1+1) Redundant High-efficiency Titanium Level power supplies with PMBus
- Optimize cooling with 5x 8cm Hot-Swap redundant fans
- JBOD Power Control Board with IPMI for remote monitor and power on-off; Internal Connection Cables Included
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-826BE2C-R609JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-826BE1C-R609JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-216BE2C-R609JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-216BE1C-R609JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 2U Storage JBOD Chassis with capacity 24 x 2.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 or SATA3 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 3 x 80mm high efficient hot-swappable fans for best system cooling
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
JBOD Chassis: 3U
CSE-836BE2C-R609JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-836BE2C-R1K03JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-836BE1C-R609JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-836BE1C-R1K03JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 3U Storage JBOD Chassis with capacity 16 x 3.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
JBOD Chassis: 4U
CSE-947SE2C-R1K66JBOD
SPECIAL HIGHLIGHT
Dual-Path Storage Enclosure
- Support two canister controllers; 1+1 redundant for Dual-Path Enclosure
- Support 60 3.5" Top Loading SAS3 12 Gb/s Hot-Swappable HDDs
- 6x SAS3.0 IO ports ( MiniSAS HD) per node
- Dedicated IPMI RJ45 management port
- Redfish OOB management protocol support
- SCSI Enclosure Services SES-4 support
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- Redundant Platinum 1600W power supply
CSE-947SE1C-R1K66JBOD
SPECIAL HIGHLIGHT
Single-Path Storage Enclosure
- Support single canister controllers
- Support 60 3.5" Top Loading SAS3 12 Gb/s Hot-Swappable HDDs
- 6x SAS3.0 IO ports ( MiniSAS HD) per node
- Dedicated IPMI RJ45 management port
- Redfish OOB management protocol support
- SCSI Enclosure Services SES-4 support
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- Redundant Platinum 1600W power supply
CSE-947HE2C-R2K05JBOD
SPECIAL HIGHLIGHT
Dual-Path Storage Enclosure for High Availability Applications
- Support two canister controllers; 1+1 redundant for Dual-Path Enclosure
- Support 90 3.5"/2.5" Top Loading SAS3 12Gb/s Hot-Swappable HDDs
- 6x SAS3.0 IO ports (MiniSAS HD/SFF-8644) per node
- Dedicated IPMI RJ45 management port
- Redfish OOB management protocol support
- SCSI Enclosure Services SES-4 support
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- Redundant Titanium 2000W power supply

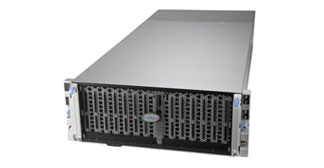

CSE-947HE1C-R2K05JBOD
SPECIAL HIGHLIGHT
Single-Path Storage Enclosure
- Single canister controllers with field serviceable tray
- Support 90 3.5"/2.5" Top Loading SATA 6Gb/s / SAS3 12Gb/s Hot-Swappable HDDs
- 6x SAS3.0 IO ports (MiniSAS HD/SFF-8644)
- Dedicated IPMI RJ45 management port
- Redfish OOB management protocol support
- SCSI Enclosure Services SES-4 support
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- Redundant Titanium 2000W power supply
CSE-946SE2C-R1K66JBOD
SPECIAL HIGHLIGHT
Extreme High Density and High Capacity Storage Chassis support 60 x 3.5" Top Loading SAS 12Gb/s Hot Swapping HDD/SSD Bays
- Tool-less HDD tray with HDD LED indicator
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
- Optimized cooling w/ 5x 80x38mm rear hot-swap fans
- Support front LCD panel for system status & error info (Option)
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-946SE1C-R1K66JBOD
SPECIAL HIGHLIGHT
Extreme High Density and High Capacity Storage Chassis support 60 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HHD/SSD Bays
- Tool-less HDD tray with HDD LED indicator
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
- Optimized cooling w/ 5x 80x38mm rear hot-swap fans
- Support front LCD panel for system status & error info (Option)
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-946LE1C-R1K66JBOD
SPECIAL HIGHLIGHT
Extreme High Density and High Capacity Storage Chassis support 45 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HDD/SSD Bays
- Tool-less HDD tray with HDD LED indicator
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
- Optimized cooling w/ 5x 80x38mm rear hot-swap fans
- Support front LCD panel for system status & error info (Option)
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-847E2C-R1K23JBOD
SPECIAL HIGHLIGHT
Double-sided High Density JBOD Storage Enclosure
- Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
- 7x 8cm (middle) hot-swap redundant cooling fans
- SAS3 (12Gbps) backplane with dual expanders supports SAS3 drives for load balancing and redundancy
- JBOD Power Control Board with IPMI for remote monitor and power on-off
- 8x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
- Palletized packaging for easy shipping and handling
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-847E1C-R1K23JBOD
SPECIAL HIGHLIGHT
Double-sided High Density JBOD Storage Enclosure
- 44x (24 front + 20 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
- Redundant 1200W Titaninum Level (1+1) power supplies with PMBus
- 7x 8cm (middle) hot-swap redundant cooling fans
- SAS3 (12Gbps) backplane with single expander supports SAS3/SATA3 drives for capacity expansion
- JBOD Power Control Board with IPMI for remote monitor and power on-off
- 4x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port
- Palletized packaging for easy shipping and handling
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-846BE2C-R609JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications:
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-846BE2C-R1K03JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
- Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications:
- Qualified SAS HBA / controller:
AOC-SAS3-9500-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9500-16E - 12Gb/s 4-external ports SAS3 HBA
AOC-SAS3-9580-8I8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-846BE1C-R609JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 600W (1+1) 94% efficient Platinum level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-846BE1C-R1K03JBOD
SPECIAL HIGHLIGHT
Cloud Backup, Data Replication, or High Density Archive Storage Applications
- 4U Storage JBOD Chassis with capacity 24 x 3.5" hot-swappable HDDs bays
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup
- 1000W (1+1) 96% efficient Titanium level power supplies
- 5 hot-plug redundant cooling fans
- Ideal for Cloud backup, data Replication or High desnsity Archive Storage Applications
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
CSE-417BE1C-R1K23JBOD
SPECIAL HIGHLIGHT
Extremely high-density 4U storage server chassis (saves 2U space)
- Maximum drives per enclosure: 72x (48 front + 24 rear) 2.5" hot-swap HDD bays for server chassis
- SAS3 (12Gbps) single expander backplane
- 1200W Titanium Level (1+1) redundant power supplies with PMBus
- Optimized thermal solution with 100% redundant cooling design
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
