Dual Controller RAID Platforms

For performance, scalability and economy

Designed to meet the requirements of today's sophisticated enterprise data
centers and high performance applications with new levels of storage
performance, scalability and reliability.

Dual Controller Platforms - Storage Servers SBB

3U SBB Platform: Mission Critical Storage Solution from Supermicro

  • Innovative, fully redundant, fault-tolerant "Storage Cluster-in-a-box" system.
  • Dual, hot-swappable dual processor serverboard canisters for all active components.
  • Supports 16x 3.5" Hot-swap HDDs (SAS or SATA*) with the option to expand by using multiple 16x 3.5” SBB JBOD
  • Dual 10GbE connection between the Serverboards via the midplane:
    • If one serverboard fails, the other serverboard is able to take over control and access the HDD's (both controllers can also work as Active-active mode), keeping the system up and running.
    • Storage software is the key to enable this feature, which is available from several Supermicro's partners.
  • High-efficiency redundant power supplies and redundant cooling fans, the SBB storage server is a highly-available, high-reliability storage system at a competitive price.

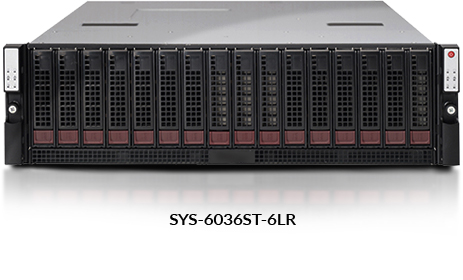

Super SBB Storage Server: Key Features (SYS-6036ST-6LR)

Super SBB Storage Server
  • 3U Mission critical storage server
  • High Density: 16x 3.5" hot-swap SAS(2)/SATA* HDDs - up to 32TB
  • Fastest Storage: 6Gb/s SAS 2.0
  • Robust Data Availability:
    • Shared storage between redundant controllers
    • Redundant power supply and cooling system
  • Greener Storage:
    • Gold Level (93%) efficiency power supply
    • 90%+ VRM power efficiency

Super SBB Storage Server: Key Components

SBB Chassis: SC937ETS-R1200NDBP

Super SBB Chassis
  • 3U Rack mount storage chassis
  • Midplane - Controllers' connections via midplane, dual 10GbE LAN & IPMI
  • Power supplies - PWS-1K21P-1R (80 PLUS Gold Level Certified)
  • Redundant controllers - X8DTS-F
  • Hot-swap cooling system
  • Mezzanine options: AOM-SAS2-L8 (LSI 2008 chip)

Super SBB controller: X8DTS-F

Super SBB controller
  • Intel® Dual Nehalem-EP Processors; Tylersburg-IOH-36D chipset
  • Up to 48GB DDR3 1333/1066/800 reg. ECC / 12GB unb. ECC in 6 DIMMs
  • SAS2 support with x36 expander & LSI 2008 / 2108 controller options
  • 3x PCI-E Gen2 slots - up to 3 add-on cards for host I/O connectivity
  • Onboard BMC for IPMI 2.0 support
  • Internal ports: one USB Type A port & one SATA DOM port
  • External ports: dual GbE LAN ports, KVM connecter (1 COM port, 2 USB, VGA), & one 6Gb/s SAS2 port for cascading

SAS2 Mezzanine Card: AOM-SAS2-L8

SAS2 Mezzanine Card
  • LSI 2008 SAS2 controller
  • 2x performance of previous generation SAS
  • Best performance per Watt / Dollar SAS 2.0 solution in the market

Super SBB Storage JBOD: Scalability Option

SuperSBB JBOD: SYS-937R-E2JB

Super SBB Storage JBOD
  • Share the same chassis with Super SBB
  • Connect Multiple JBODs to a single SBB Storage Server
  • Redundant Dual Path JBOD with LSI SAS2 Expander
  • Hot-pluggable
  • 6Gb/s SAS(2) / SATA support
